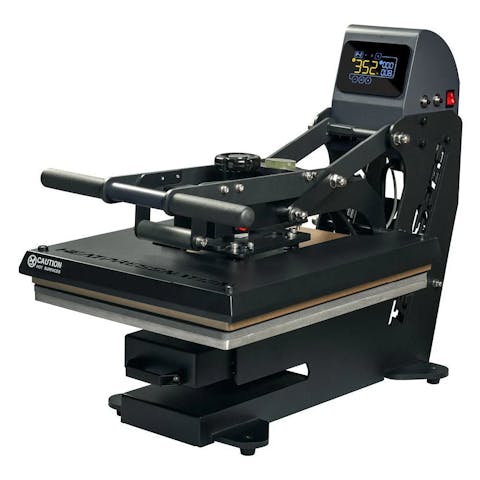

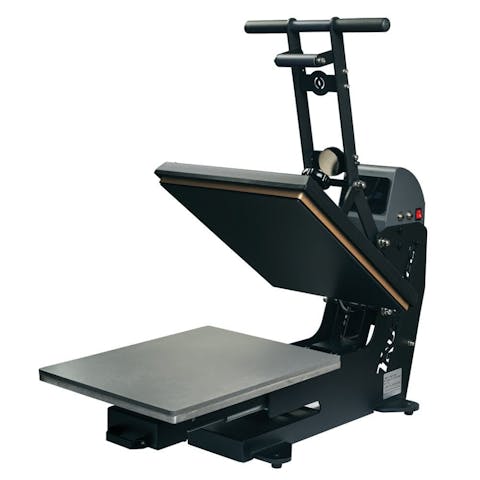

HPN TrueSpec 16" x 20" Auto-Open Hybrid Heat Press

$2,058.40

Introducing the HPN TrueSpec Series! Built from the ground up for durability, performance, and flexibility, the TrueSpec heat press delivers professional-grade pressing with hybrid auto-open operation, enhanced heat distribution, and production-ready construction designed for demanding workflows.

Heat Press Style: Hybrid Auto-Open/Manual Clamshell with Slide-Out Drawer
Heat Press Dimensions: 32” x 18” x 38” (D x W x H in open position)
Heating Element Size: 15.75" x 19.75" (L x W)
Maximum Material Thickness: 0.25" (Up to 0.5" with handle removed)
Gauge Reading: Fahrenheit or Celsius degree measure
Voltage: 120V
Power Rating: 1700W / 14 Amps
Maximum Temperature: 437º F
Time Range: 0–999 Seconds
Heat Press Weight: 143 lbs
Shipping Weight: Carton 1 – 140 lbs | Carton 2 – 31 lbs
Shipping Dimensions: Carton 1 – 23" x 36" x 23" | Carton 2 – 20" x 24" x 11"

Extended Warranty:

Protect your investment by extending the manufacturer's parts and service warranty.

HeatPressNation's MyExpert Protection keeps your device covered when bad luck happens. We'll work with the manufacturer to makes sure you receive the correct replacement parts and service for your product.

Plans:

1 Year Total Coverage - Included with purchase
2 Years Total Coverage - $49.99
3 Years Total Coverage - $79.99
4 Years Total Coverage - $99.99

Quantity

Only 1 sample pack per customer

Product Details

The HPN TrueSpec 16" x 20" Auto-Open Hybrid Heat Press is engineered for shops that demand durability, precision, and workflow efficiency, featuring an industrial laser-cut steel frame, a solid-core heating element over 20% thicker for superior heat consistency, and hybrid auto-open functionality that lets you switch between automatic and manual operation. A slide-out drawer platen improves safety and loading efficiency, while touchscreen controls with real-time pressure readout and preset storage ensure repeatable results across every job. Finished with the signature gold upper platen cover—the mark of a genuine TrueSpec press—this machine delivers professional performance built to handle daily production with confidence.

Features

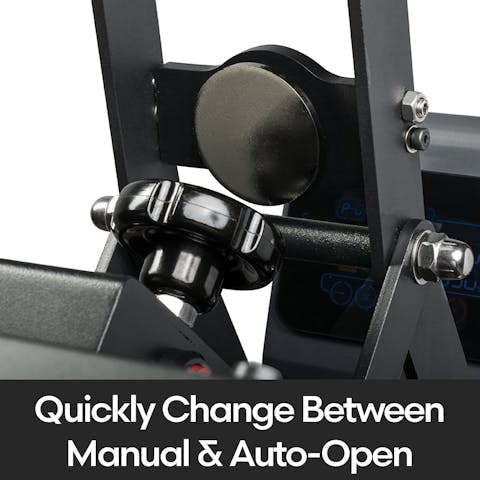

Hybrid Auto-Open Operation: Switch between auto-open and manual modes so the press opens automatically when your timer finishes or operates manually when needed.

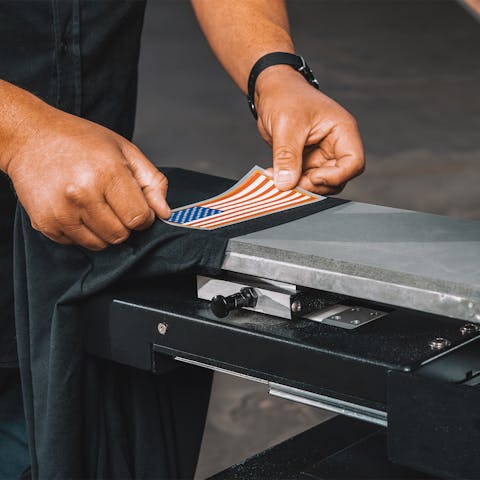

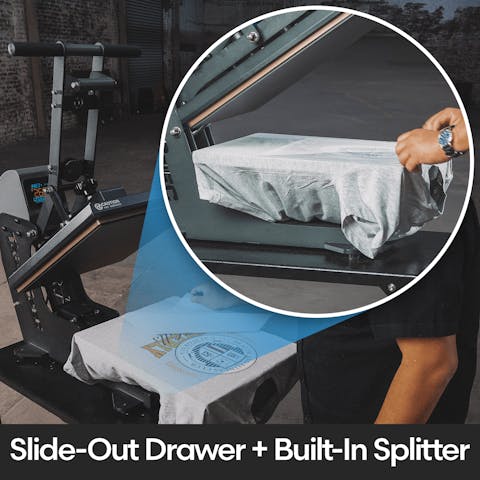

Slide-Out Lower Platen: Drawer-style platen keeps hands safely away from heat while improving garment and transfer placement.
Enhanced Heating Element: Solid-core heating element is over 20% thicker for improved heat retention and even distribution.

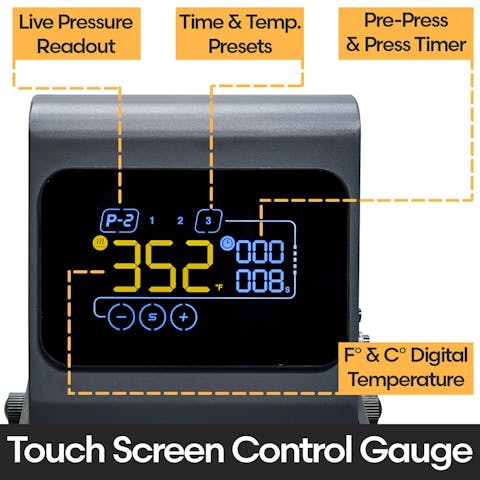

Touchscreen Controls with Pressure Readout: Modern touchscreen panel shows real-time pressure and stores presets for consistent, repeatable jobs.

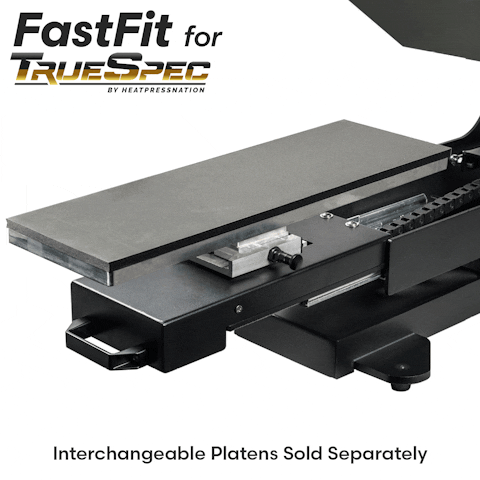

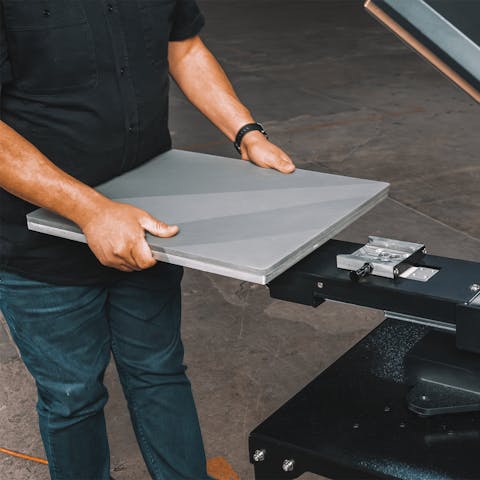

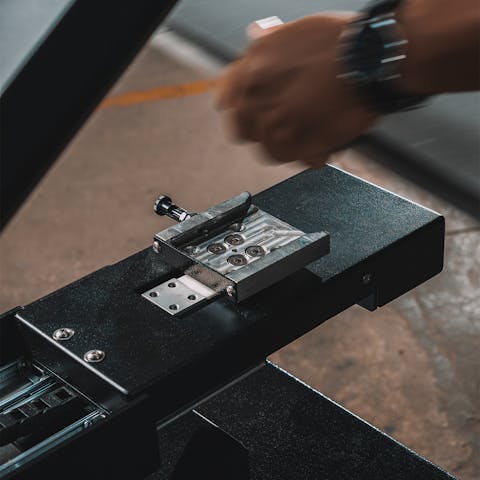

Interchangeable Fast Fit Platens: Compatible with multiple platen sizes to easily handle small items, sleeves, and full-size garments.
