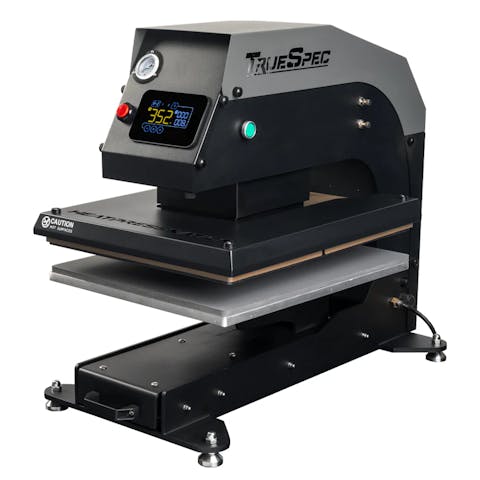

HPN TrueSpec 16" x 20" Pneumatic Slide-Out Drawer Heat Press

$3,449.95

Introducing the HPN TrueSpec Pneumatic Series! Designed for production shops that demand consistency and efficiency, this air-powered TrueSpec press eliminates manual effort while delivering precise, repeatable results across high-volume workflows.

  • Heat Press Style: Pneumatic
  • Heating Element Size: 15.75" x 19.75" (L x W)
  • Maximum Item Thickness: 1.25"
  • Gauge Reading: Fahrenheit or Celsius degree measure
  • Voltage: 120V
  • Power Rating: 1700W / 14 Amps
  • Maximum Temperature: 437º F
  • Time Range: 0–999 Seconds
  • Base Dimensions: 28" x 15.5"
  • Machine Dimensions: 17.5" x 26" x 34" (W x H x D)
  • Machine Weight: 165.3 lbs
  • Shipping Weight: 253.5 lbs (Freight Shipping Required)
  • Shipping Dimensions: 40" x 22.8" x 32.8"

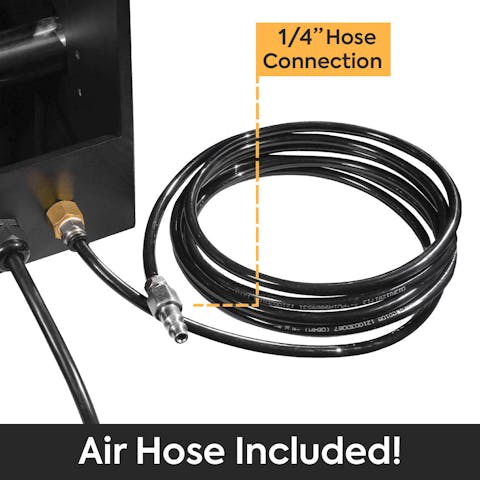

  • Air Compressor Requirement: 10 gallon, 2 HP air compressor required (not included)



Extended Warranty

Protect your investment by extending the manufacturer's parts and service warranty.

HeatPressNation's MyExpert Protection keeps your device covered when bad luck happens. We'll work with the manufacturer to makes sure you receive the correct replacement parts and service for your product.

Plans

  • 1 Year Total Coverage - Included with purchase
  • 2 Years Total Coverage - $79.99
  • 3 Years Total Coverage - $159.99
  • 4 Years Total Coverage - $239.99
Quantity
Only 1 sample pack per customer

Heat Press Essentials

Everything you need for cleaner, safer presses.

Silicone Upper Platen Cover & Garment Protector - Ninja Transfers

Ninja Silicone Garment Protector

Starting at
$19.99
Silicone Upper Platen Cover & Garment Protector - Ninja Transfers

Ninja Silicone Garment Protector

$19.99
Size
Protect garments from direct contact with the upper platen with the Ninja Silicone Garment Protector, the preferred heat press cover for print shops and apparel decorators alike. A substantial upgrade from parchment p...
See More
Protect garments from direct contact with the upper platen with the Ninja Silicone Garment Protector, the preferred heat press cover for print shops and apparel decorators alike. A substantial upgrade from parchment paper, it prevents scorching and speeds up production by staying mounted to your press with the included Neodymium Magnet Set, making it the all-in-one solution for pressing DTF transfers, patches, vinyl, and more. Crafted from durable silicone Softens the heat, preventing scorching and unwanted iron lines Adds a textured finish to your transfers, enhancing appearance and hand feel. NOTE: When using, increase your heat by 20°F to 40°F to compensate for the added thickness of the silicone.
See Less
Lower Heat Press Platen Cover - Ninja Transfers

Lower Heat Press Platen Cover

Starting at
$34.99
Lower Heat Press Platen Cover - Ninja Transfers

Lower Heat Press Platen Cover

$34.99
Size
The custom-made Lower Heat Press Platen Cover by Ninja Transfers is designed for seamless garment placement. This innovative cover boasts a smooth yet non-slip surface that keeps fabrics securely in place while pressi...
See More
The custom-made Lower Heat Press Platen Cover by Ninja Transfers is designed for seamless garment placement. This innovative cover boasts a smooth yet non-slip surface that keeps fabrics securely in place while pressing without the slickness of standard covers. Unlike traditional alternatives that may re-shine designs or cause garments to slide, this platen cover ensures a matte finish, preserving the integrity of your creations. It also minimizes wear and tear on the silicone upper platen cover of your heat press, extending its lifespan. Whether you're working with DTF transfers, patches, vinyl, or anything else, the Ninja Transfers Lower Heat Press Platen Cover delivers reliable protection and professional results every time. Pair with our Silicone Upper Platen Cover & Garment Protector for the ultimate heat press setup.
See Less
Hat Press Silicone Protector - Ninja Transfers

热压机保护片

Starting at
$11.99
Hat Press Silicone Protector - Ninja Transfers

热压机保护片

$11.99
为您的热压机提供可靠的保护，确保完美的转印和持久的性能。这些保护片具有卓越的耐热性和无与伦比的耐用性，经过精心制作，可以应对最严格的热压任务。与我们的防护片磁铁套装完美配合
See More
为您的热压机提供可靠的保护，确保完美的转印和持久的性能。这些保护片具有卓越的耐热性和无与伦比的耐用性，经过精心制作，可以应对最严格的热压任务。与我们的防护片磁铁套装完美配合
See Less
防护罩重型磁铁组

防护罩重型磁铁组

Starting at
$6.49
防护罩重型磁铁组

防护罩重型磁铁组

$6.49
使用重型磁铁时，防护板不会再打滑！ 探索保护您的最终解决方案 护板 毫不费力且有效地作用于您的受压表面。我们的重型磁铁重新定义了便利性和安全性，确保您的工作环境得到优化，以取得成功。 请注意：使用这些磁铁时，由于其强大的强度，请格外小心。您的安全至关重要，负责任的处理至关重要。
See More
使用重型磁铁时，防护板不会再打滑！ 探索保护您的最终解决方案 护板 毫不费力且有效地作用于您的受压表面。我们的重型磁铁重新定义了便利性和安全性，确保您的工作环境得到优化，以取得成功。 请注意：使用这些磁铁时，由于其强大的强度，请格外小心。您的安全至关重要，负责任的处理至关重要。
See Less

Product Details

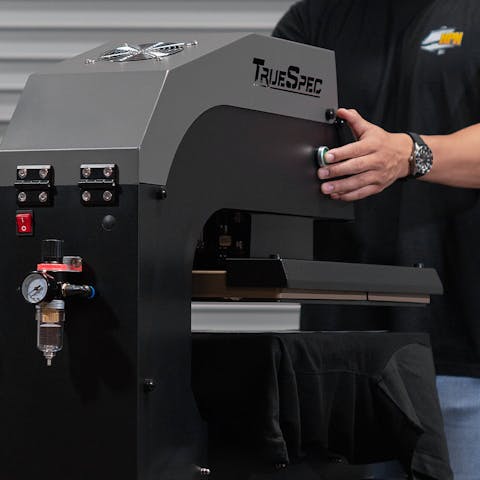

The HPN TrueSpec 16" x 20" Pneumatic Heat Press delivers next-level production performance by combining TrueSpec’s industrial build quality with fully pneumatic operation for effortless, repeatable pressing. Powered by an external air compressor, the press automatically lowers and opens with the push of a button, eliminating operator fatigue while ensuring consistent time, temperature, and pressure across every transfer. A slide-out lower platen improves safety and loading efficiency, while touchscreen controls with pressure readout and interchangeable platen compatibility provide the flexibility high-volume shops demand. Finished with the signature gold upper platen cover—the mark of a genuine TrueSpec press—this freight-shipped production machine is built for serious commercial workflows.

Price Calculator

Features

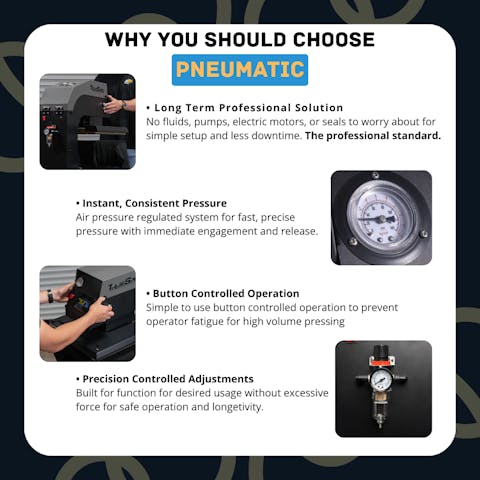

  • Fully Pneumatic Operation: Air-powered pressing automatically lowers and opens the machine, eliminating manual effort and ensuring consistent pressure every cycle.

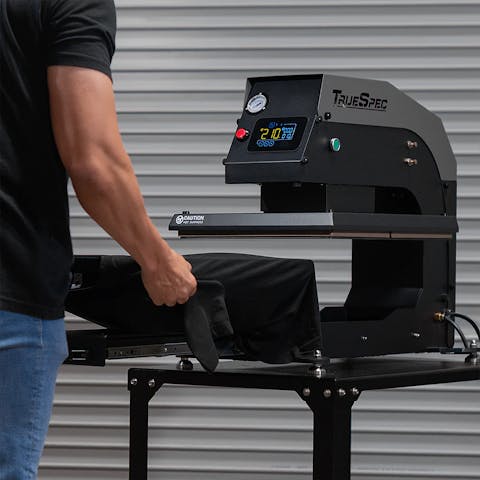

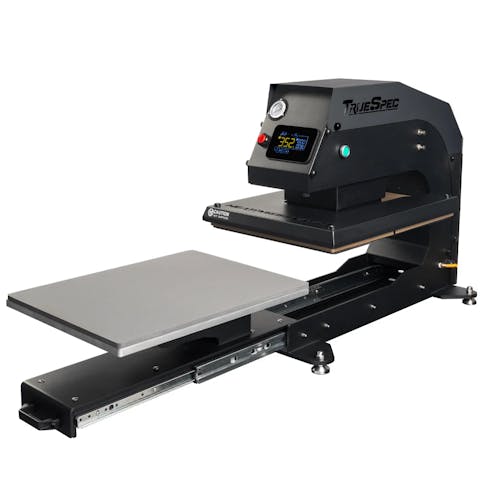

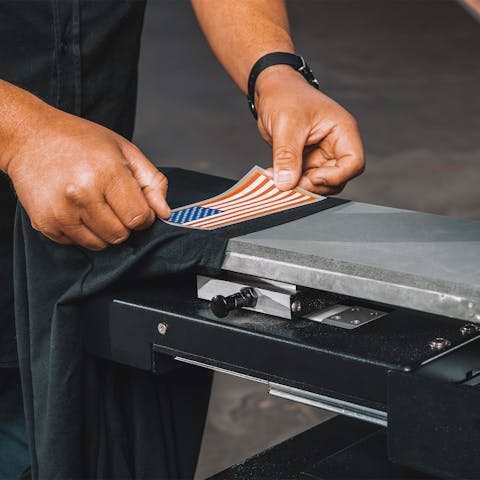

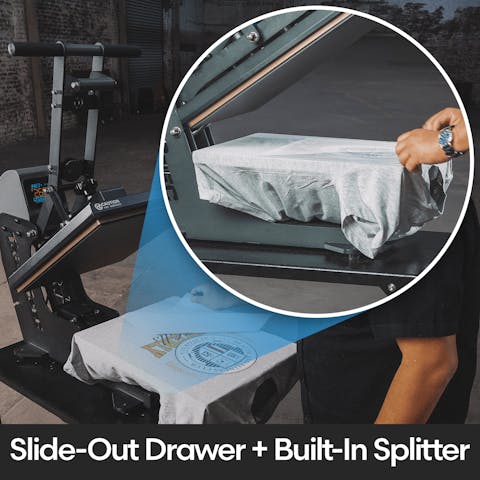

  • Slide-Out Lower Platen: Drawer-style platen improves safety and speeds up garment and transfer placement.
  • Enhanced Heating Element: Solid-core element over 20% thicker for superior heat retention and even temperature distribution.

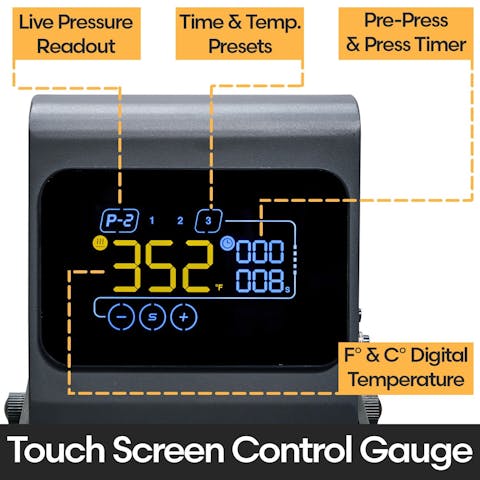

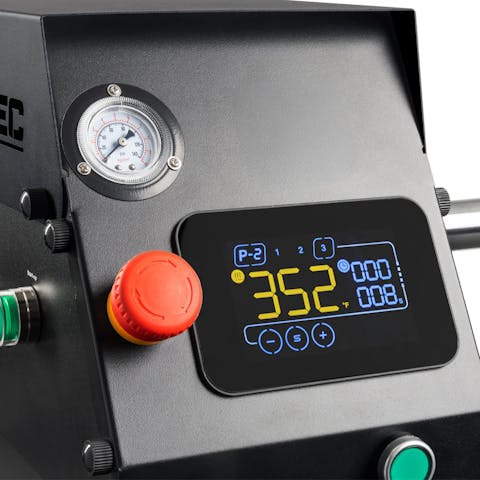

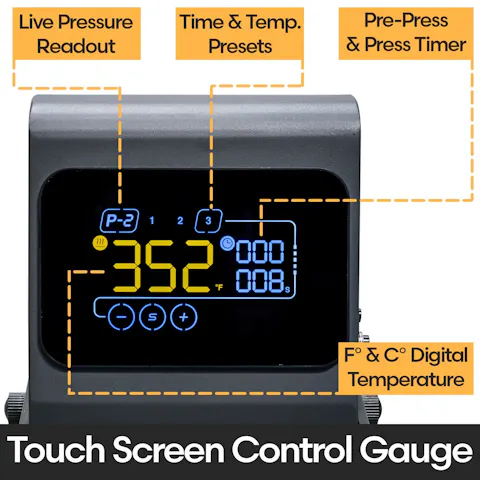

  • Touchscreen Controls with Pressure Readout: Digital touchscreen provides real-time pressure display and preset storage for repeatable results.

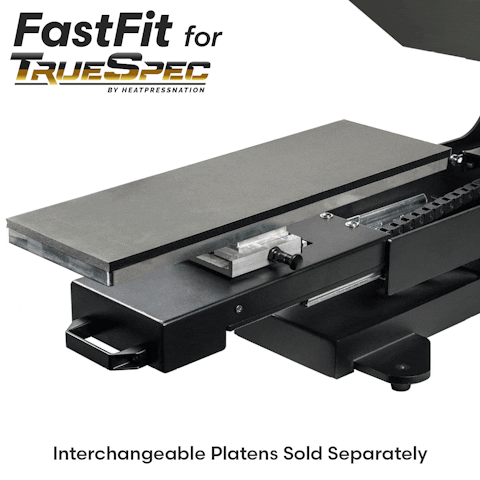

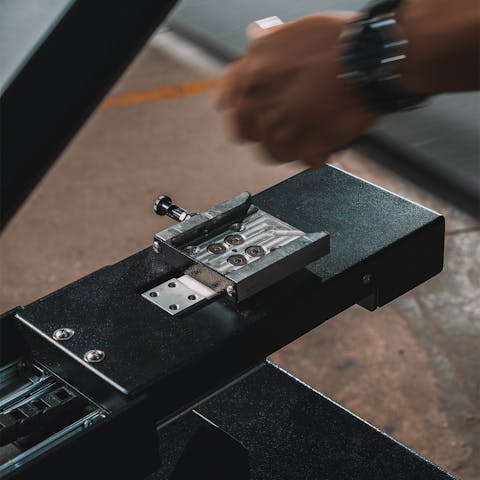

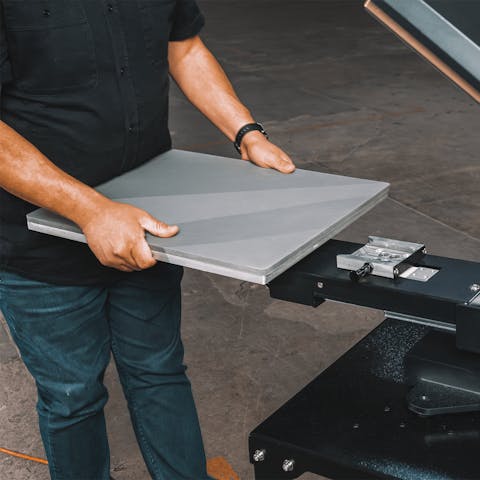

  • Interchangeable Fast Fit Platens: Compatible with multiple platen sizes to easily handle small items, sleeves, and full-size garments.
