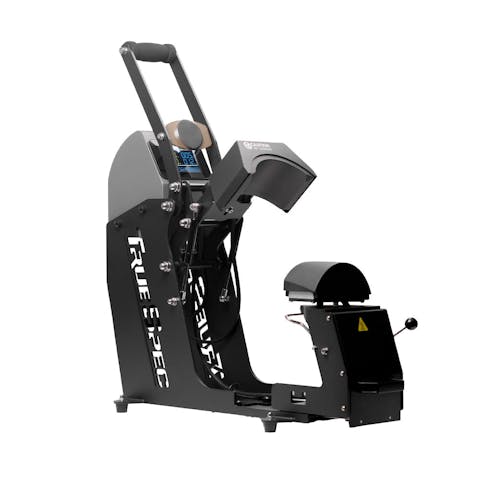

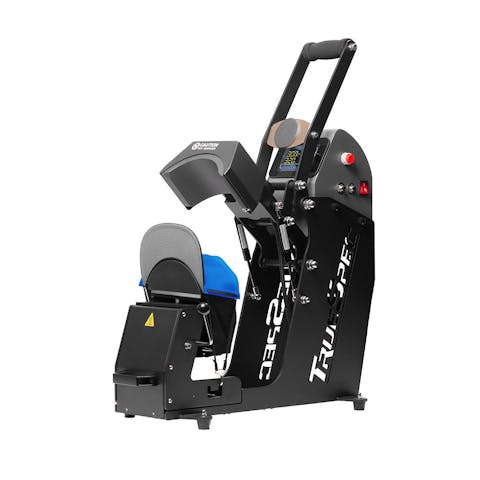

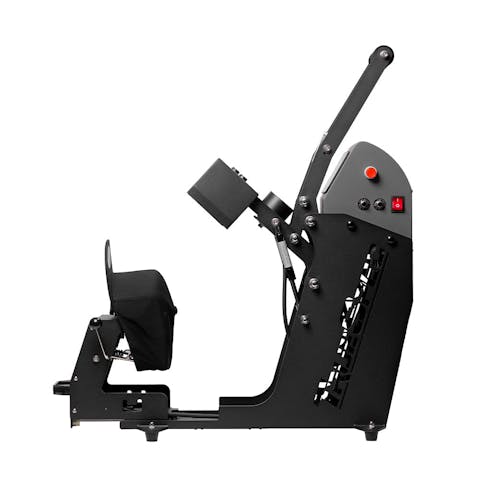

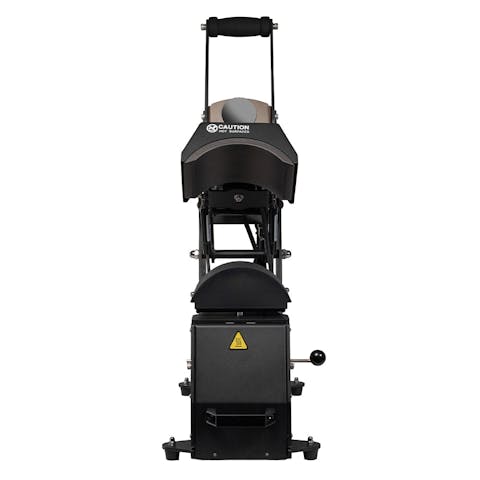

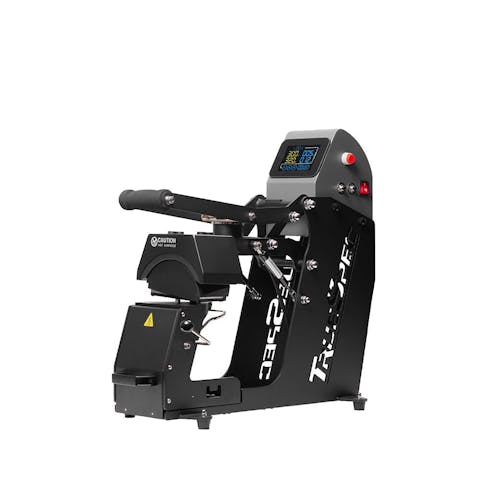

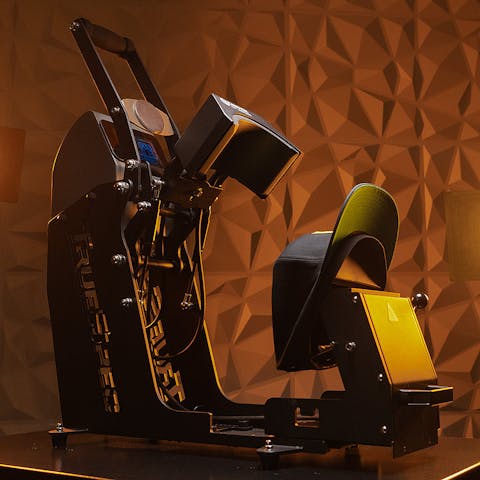

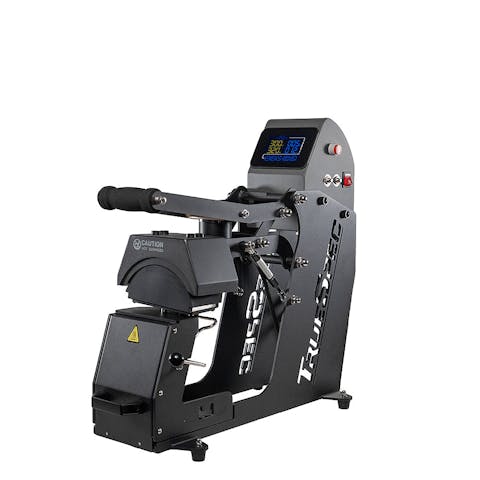

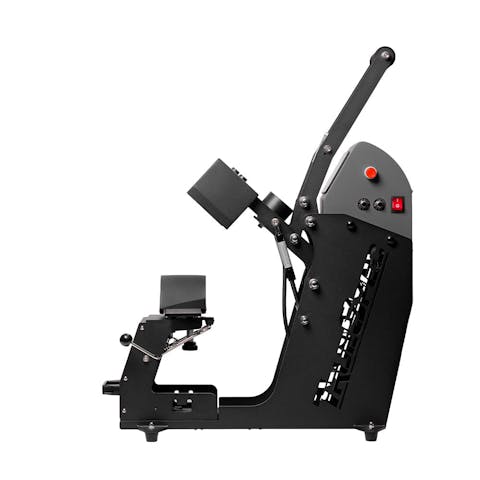

Introducing the TrueSpec Cap Heat Press! Designed for decorators who demand accuracy and efficiency, this dual-heat slide-out cap press provides consistent heat application, safer workflow, and professional results on today’s wide range of cap styles.

Specifications:

• Heat Press Style: Dual Heat Slide-Out Cap Press
• Heat Press Dimensions: 23" x 10" x 30" (D x W x H in open position)
• Heat Press Dimensions: 27" x 10" x 30" (D x W x H with slide-out drawer extended)
• Heat Press Base Dimensions: 18.5" x 9.5"
• Upper Heating Element Size: 3.65" x 7"
• Lower Heating Element Size: 3.35" x 6"
• Heat Press Weight: 48 lbs
• Gauge Reading: Fahrenheit or Celsius
• Voltage: 120V
• Power Rating: 1200W / 10 Amps
• Maximum Upper Temperature: 400º F
• Maximum Lower Temperature: 320º F (280º F surface for patches)
• Time Range: 0–999 seconds
• Shipping Weight: 67 lbs
• Shipping Dimensions: 27" x 16" x 28"

FEATURES

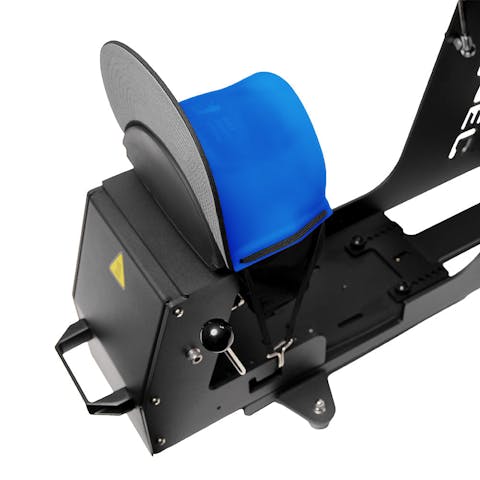

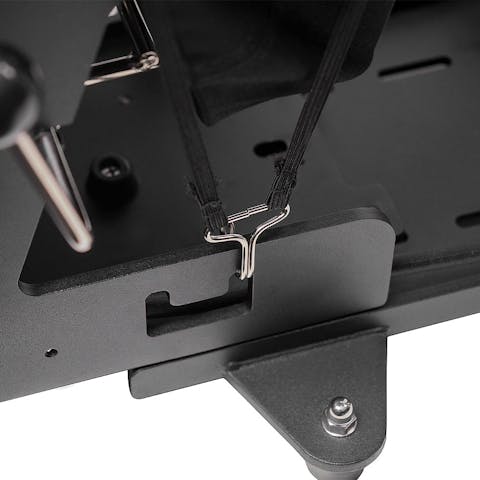

	TrueSpec TransferGuard (Patent Pending) - A semi-transparent, heat-conductive overlay that secures transfers in place using tension hooks, eliminating the need for heat tape. Its ultra-thin design allows even heat transfer while protecting caps and sensitive patches from being scorched during pressing.

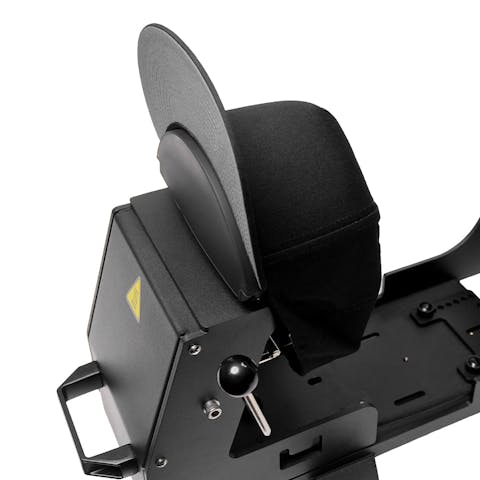

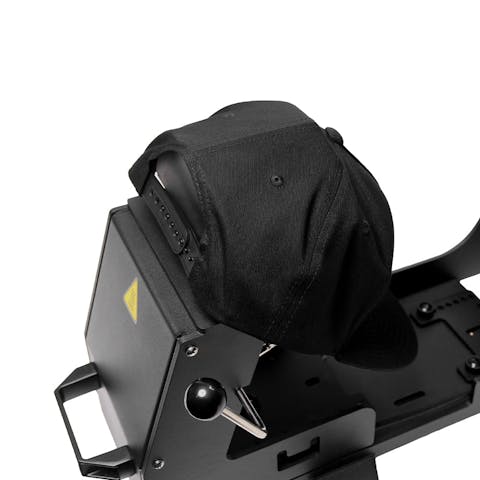

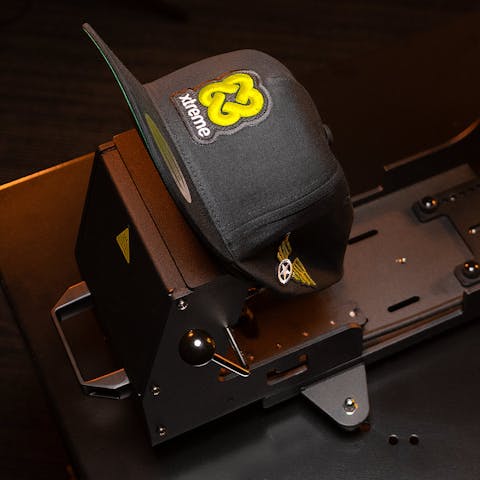

	Slide-Out Drawer (Patent Pending) - The slide-out drawer provides a safer, more efficient workflow by allowing caps and transfers to be loaded away from the upper heat before sliding back in to press.

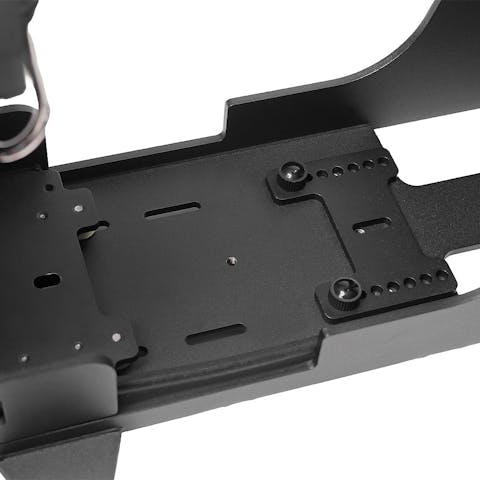

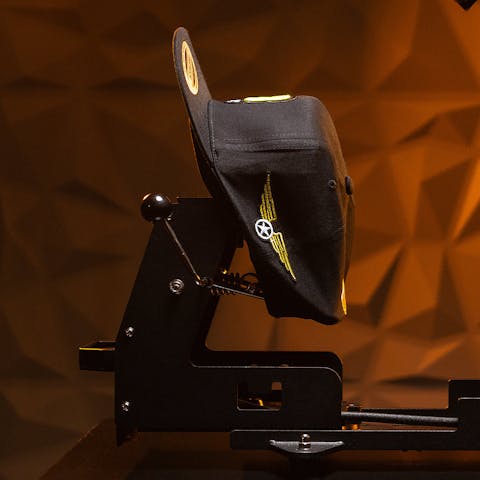

	Limit Plate Adjustment (Patent Pending) - The adjustable limit plate prevents the upper heating element from contacting the bill by stopping the slide-out drawer precisely over the crown. Multiple mounting positions allow the stop point to be fine-tuned for different hat sizes and profiles.
	All-Around Pressing - Increased depth of the frame allows pressing on any side of the hat.

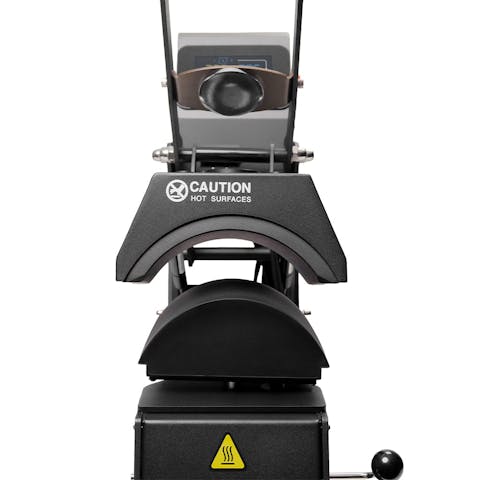

	Updated Platen Curvature - The newly designed platen curvature conforms more closely to modern caps, using smooth edges to reduce pressure lines, creasing, and scorching.

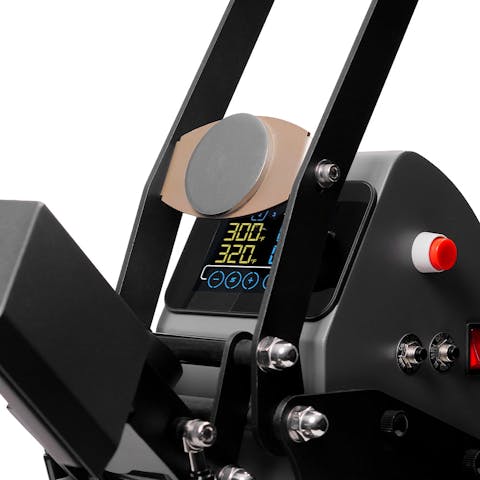

	Dual temperature and Dual Time - Allows the upper and lower heating elements to operate together, delivering even heat from both sides for consistent results on demanding applications such as patches. 3 Programmable Presets - Save your most used temperature and time settings for quick setup and use.

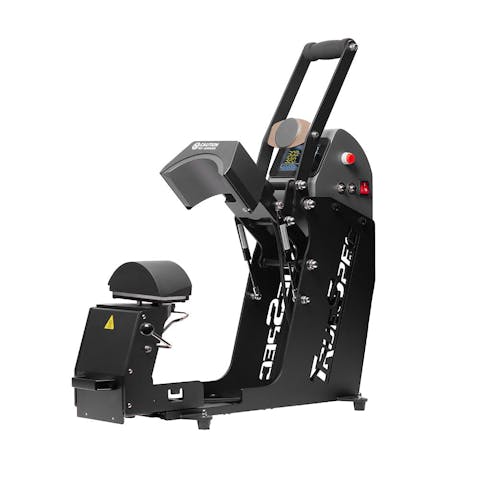

	Auto-Open - The auto-open mechanism uses a gas shock to control and assist the opening motion, delivering smooth, automatic release at the end of the press cycle.
