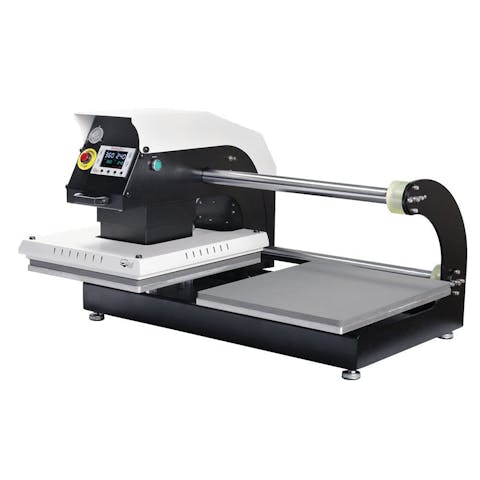

HPN Signature Series 16" x 20" Double Station Pneumatic Heat Press

$3,449.95

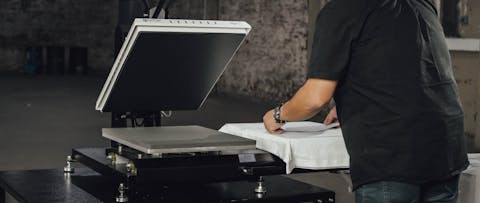

The HPN Signature Series 16" x 20" Double Station Pneumatic Heat Press is a dual-station machine designed for maximum efficiency and consistency. Each station features a 16" x 20" lower platen and uses a heavy-duty heating element for even heat distribution. With a digital controller and pneumatic operation powered by an air compressor, it ensures precise time, temperature, and pressure every time—no manual effort required. The sliding upper platen and control panel allow you to prep one item while pressing another, eliminating downtime and reducing operator fatigue.

Heat Press Style: Auto-Open/Pneumatic/Double Station
Heat Press Base Dimensions: 35” x 21” (Length x Depth)
Overall Heat Press Dimensions: 43" x 32" x 24" (L x D x H in open position)
Double Stand Dimensions: 32.5" L x 43" W x 28" H with wheels, 24" H
Gauge Reading: Fahrenheit or Celsius degree measure
Voltage: 120V
Power Rating: 1450W
Maximum Temperature: 400º F
Maximum Substrate Height:
- With Silicone Pad: 1.2"
- Without Silicone Pad: 2"
Time Range: 0-999 Seconds
Shipping Weight: 353 lbs Crate
Warranty: 1 Year
A 10 gallon 2 HP air compressor is required for use (not included)

Extended Warranty

Protect your investment by extending the manufacturer's parts and service warranty.

HeatPressNation's MyExpert Protection keeps your device covered when bad luck happens. We'll work with the manufacturer to makes sure you receive the correct replacement parts and service for your product.

Add "MyExpert Protection" when adding your product to the car

Plans:

1 Year Total Coverage - Included with purchase
2 Years Total Coverage - $79.99
3 Years Total Coverage - $159.99
4 Years Total Coverage - $239.99

Select please choose

without Liftgate Service

with Liftgate Service

Select add a hpn universal heat press double stand with wheels ($450)?

Variants

Quantity

Only 1 sample pack per customer

Heat Press Essentials

Everything you need for cleaner, safer presses.

Silicone Upper Platen Cover & Garment Protector - Ninja Transfers

Ninja Silicone Garment Protector

Starting at

$19.99

Lower Heat Press Platen Cover

Starting at

$34.99

Hat Press Silicone Protector

Starting at

$11.99

Neodymium Magnet Set

Starting at

$6.49

Product Details

Make this more concise and condense down to just one paragraph, only keep the key information customers will need to know: Introducing the HPN Signature Series 16" x 20" Double Station Pneumatic Heat Press. This brand new machine from Heat Press Nation has two stations, each with a 16" x 20" lower platen. This heat press features our Signature Series digital controller for dialing in the precise time and temperature settings and is powered by our sixteen by our heavy duty heating element, which ensures even and consistent heat throughout the entire pressing area.

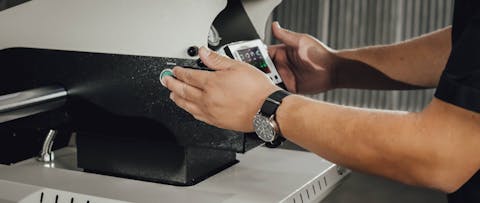

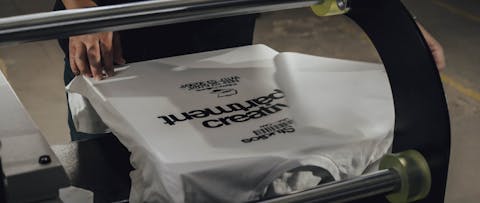

The HPN Signature Series 16" x 20" Double Station Pneumatic Heat Press is our first pneumatic heat press! Simply set the pressure to the desired PSI using the knob on the control panel, and then press a button to lower the heating element onto your item. Once the timer reaches 0, the press will automatically open - all this is powered by an air compressor (sold separately). This eliminates the physical effort required to open and close the machine, which drastically reduces operator fatigue. This is an incredible leap forward in consistency since your transfers will now get the same time, temperature, and pressure applied EVERY TIME - no matter who is operating the machine.

Features

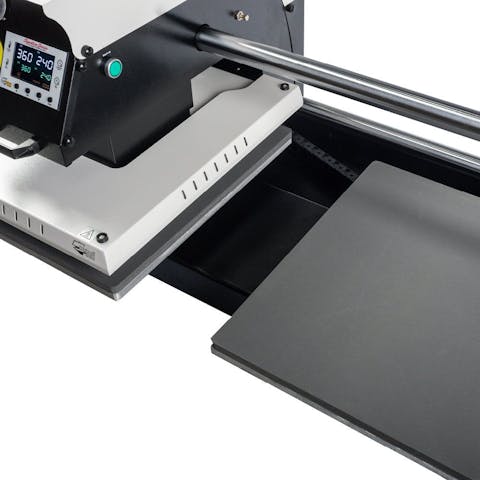

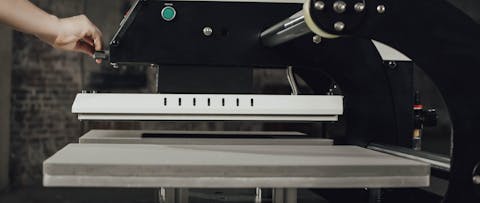

Dual Station Design: Two 16" x 20" lower platens with a sliding upper heating element maximize productivity by allowing continuous pressing and prep work.

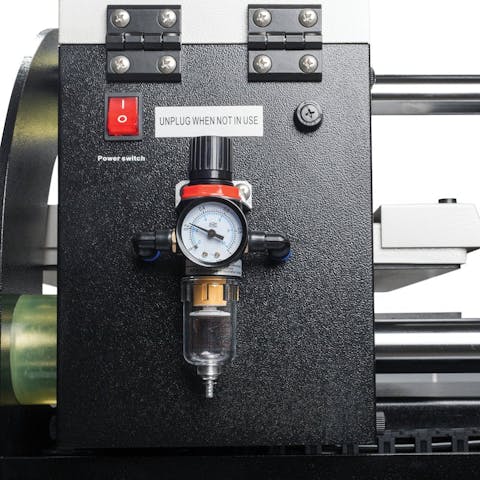

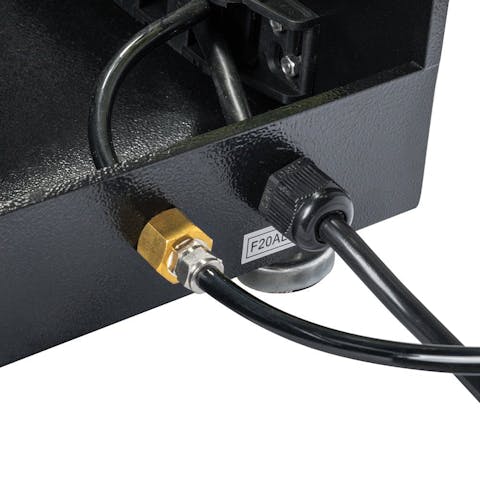

Pneumatic Operation: Compressed air-powered (air compressor sold separately) for automatic open/close action and hands-free operation—perfect for high-volume output.
Adjustable Pressure Clamp: Fine-tune from low to high pressure to accommodate a wide range of materials and transfer types.

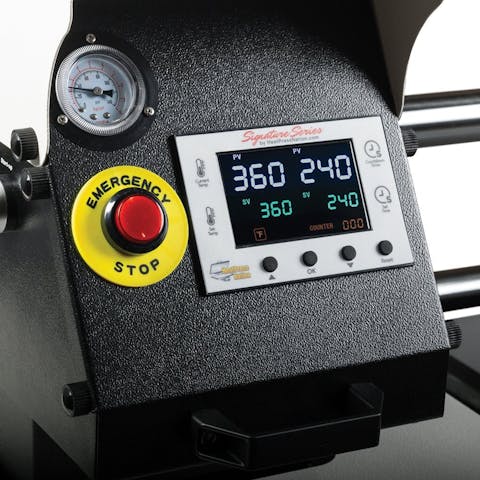

Precision Digital Controls: Upgraded digital time and temperature gauge with a 4-degree accuracy range, °C/°F toggle, and pre-end audible alert to prevent overheating.

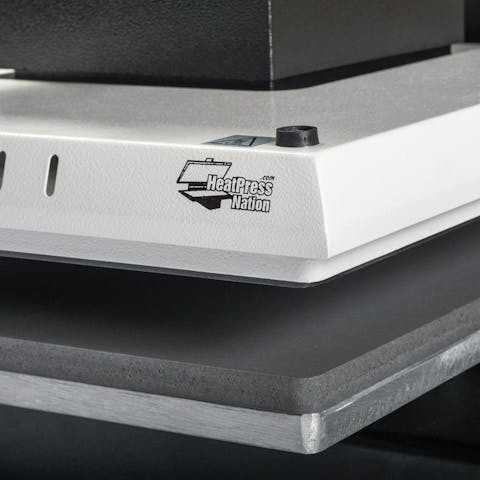

Commercial-Grade Build: Solid steel welded framework and reinforced structure deliver durability and stability for high-pressure, long-term use.
Dual Fuse Protection: Built-in safety features for reliable electrical protection.

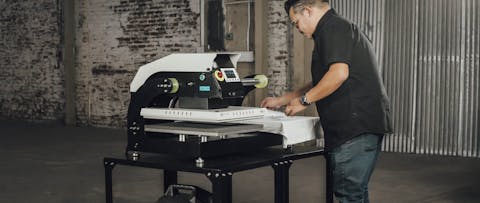

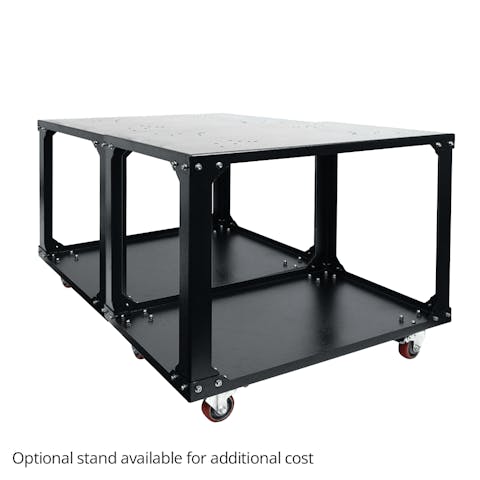

Optional Stand: Compatible with the HPN Universal Heat Press Double Stand with Wheels for added mobility and ergonomic workflow.
