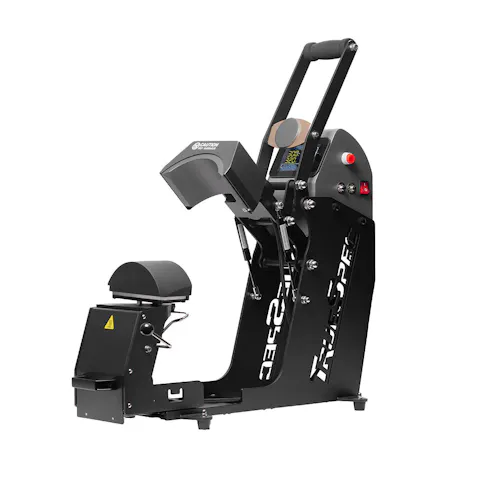

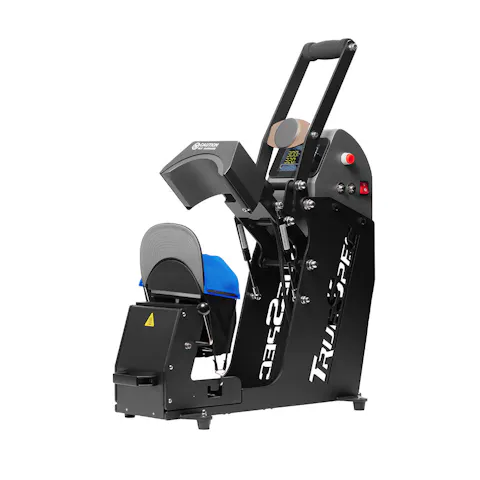

HPN TrueSpec Dual Heat Slide-Out Cap Press

Introducing the TrueSpec Cap Heat Press! Designed for decorators who demand accuracy and efficiency, this dual-heat slide-out cap press provides consistent heat application, safer workflow, and professional results on today’s wide range of cap styles.

Specifications:

• Heat Press Style: Dual Heat Slide-Out Cap Press
• Heat Press Dimensions: 23" x 10" x 30" (D x W x H in open position)
• Heat Press Dimensions: 27" x 10" x 30" (D x W x H with slide-out drawer extended)
• Heat Press Base Dimensions: 18.5" x 9.5"
• Upper Heating Element Size: 3.65" x 7"
• Lower Heating Element Size: 3.35" x 6"
• Heat Press Weight: 48 lbs
• Gauge Reading: Fahrenheit or Celsius
• Voltage: 120V
• Power Rating: 1200W / 10 Amps
• Maximum Upper Temperature: 400º F
• Maximum Lower Temperature: 320º F (280º F surface for patches)
• Time Range: 0–999 seconds
• Shipping Weight: 67 lbs
• Shipping Dimensions: 27" x 16" x 28"

FEATURES

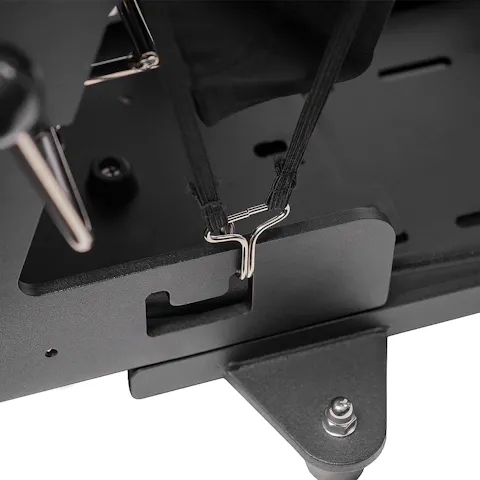

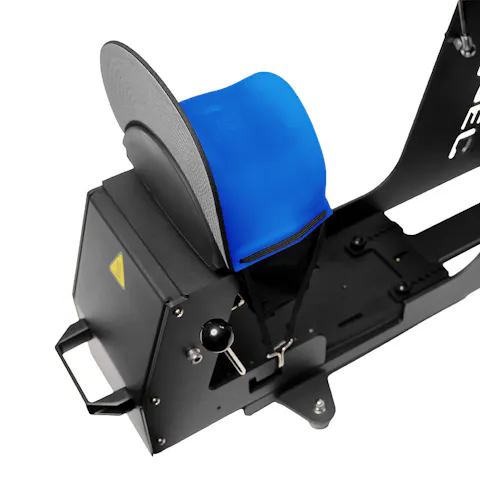

	TrueSpec TransferGuard (Patent Pending) - A semi-transparent, heat-conductive overlay that secures transfers in place using tension hooks, eliminating the need for heat tape. Its ultra-thin design allows even heat transfer while protecting caps and sensitive patches from being scorched during pressing.

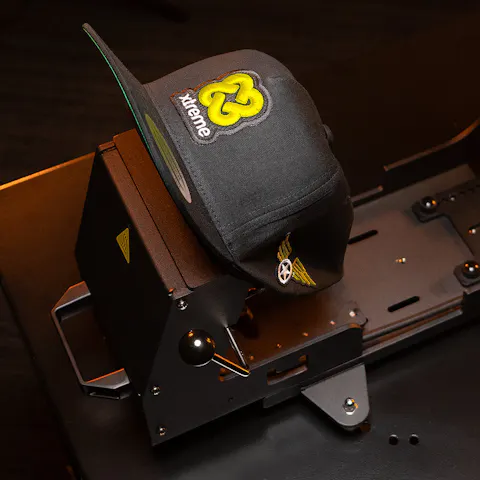

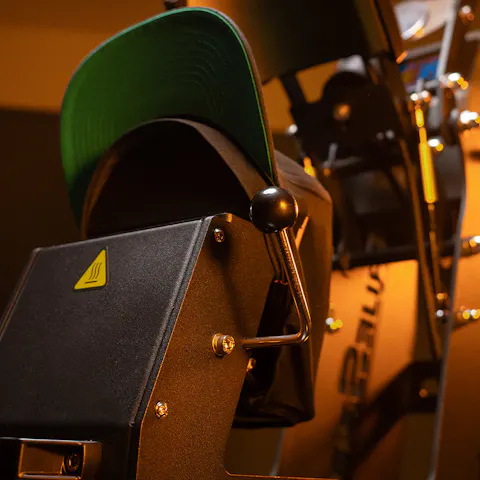

	Slide-Out Drawer (Patent Pending) - The slide-out drawer provides a safer, more efficient workflow by allowing caps and transfers to be loaded away from the upper heat before sliding back in to press.
	Limit Plate Adjustment (Patent Pending) - The adjustable limit plate prevents the upper heating element from contacting the bill by stopping the slide-out drawer precisely over the crown. Multiple mounting positions allow the stop point to be fine-tuned for different hat sizes and profiles.
	All-Around Pressing - Increased depth of the frame allows pressing on any side of the hat.
	Updated Platen Curvature - The newly designed platen curvature conforms more closely to modern caps, using smooth edges to reduce pressure lines, creasing, and scorching.

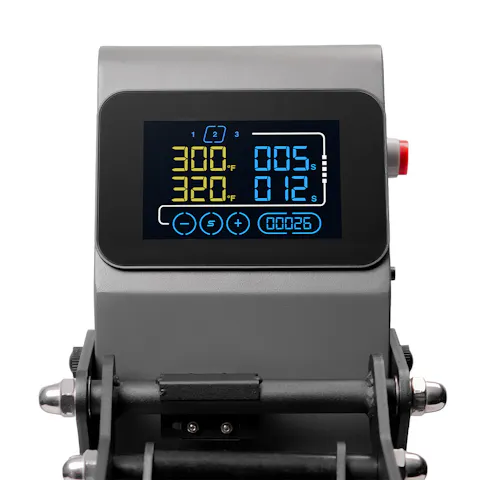

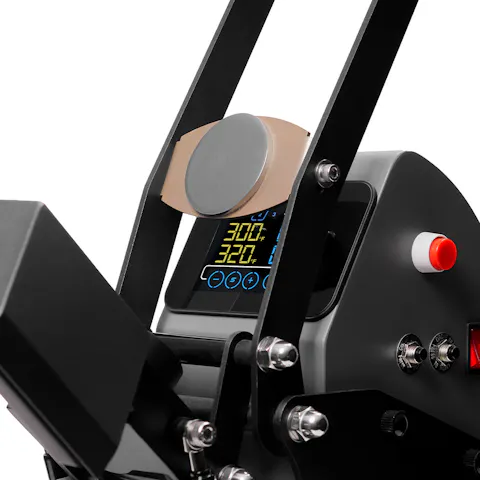

	Dual temperature and Dual Time - Allows the upper and lower heating elements to operate together, delivering even heat from both sides for consistent results on demanding applications such as patches. 3 Programmable Presets - Save your most used temperature and time settings for quick setup and use.
	Auto-Open - The auto-open mechanism uses a gas shock to control and assist the opening motion, delivering smooth, automatic release at the end of the press cycle.

EXTENDED WARRANTY

Protect your investment by extending the manufacturer's parts and service warranty.

HeatPressNation's MyExpert Protection keeps your device covered when bad luck happens. We'll work with the manufacturer to makes sure you receive the correct replacement parts and service for your product.

PLANS

• 1 Year Total Coverage - Included with purchase
• 2 Years Total Coverage - $49.99
• 3 Years Total Coverage - $79.99
• 4 Years Total Coverage - $99.99
