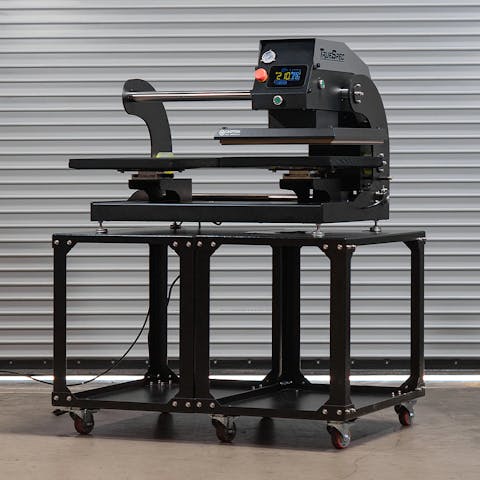

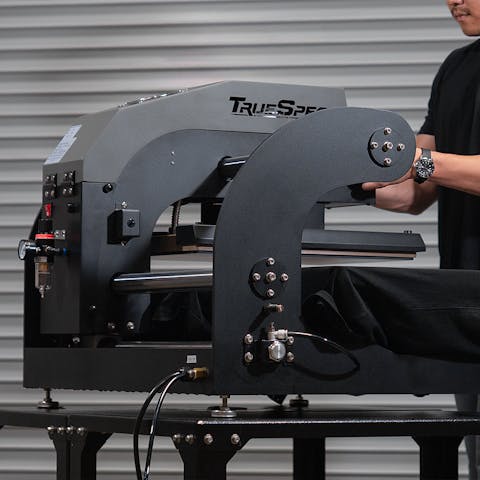

HPN TrueSpec 16" x 20" Double Station Pneumatic Heat Press

Name: HPN TrueSpec 16" x 20" Double Station Pneumatic Heat Press
Brand: HeatPressNation
SKU: HPN-TS-1620-DSP
Price: 3999.95 USD
Availability: InStock

$3,999.95

Introducing the TrueSpec 16" x 20" Auto-Open Hybrid Heat Press by Heat Press Nation – a revolutionary machine designed from the ground up to elevate your heat press experience. Built with a laser-cut steel frame for durability, TrueSpec is designed to withstand the rigors of any job. With a sliding dual lower platen you're now able to increase your workpace significantly. While your first transfer is being applied, you're able to prepare the next one at the same time. The heating element is our best yet – over 20% thicker than our Signature Series, with unmatched heat distribution and retention, plus an anti-burn shield for added safety.

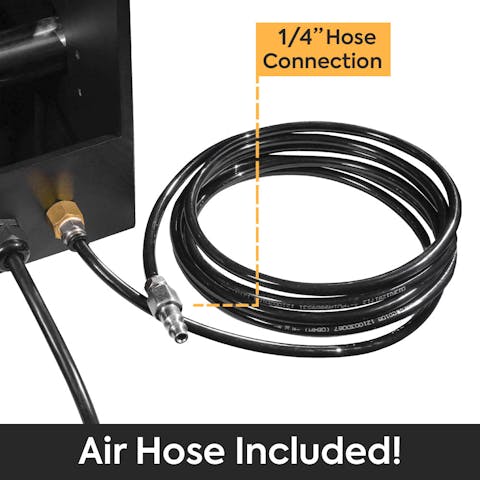

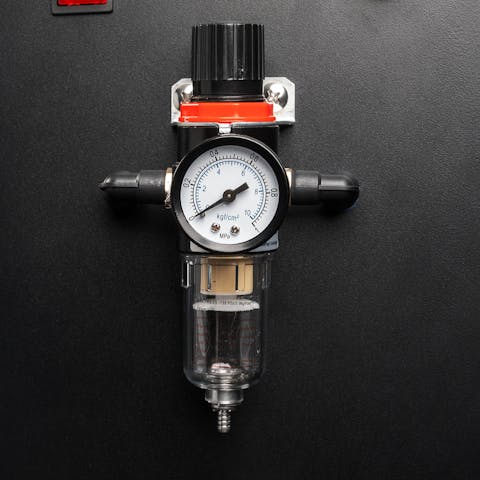

The HPN TrueSpec 16" x 20" Pneumatic Heat Press is our first pneumatic heat press! Simply set the pressure to the desired PSI using the knob on the control panel, and then press a button to lower the heating element onto your item. Once the timer reaches 0, the press will automatically open - all this is powered by an air compressor (sold separately). This eliminates the physical effort required to open and close the machine, which drastically reduces operator fatigue. This is an incredible leap forward in consistency since your transfers will now get the same time, temperature, and pressure applied EVERY TIME - no matter who is operating the machine. Along with this, this model also features Automatic Station Switching! By pressing the green button on the front, this will automatically move the Upper Control Housing & Heating Element to the opposite platen instead of having to manually slide it over.

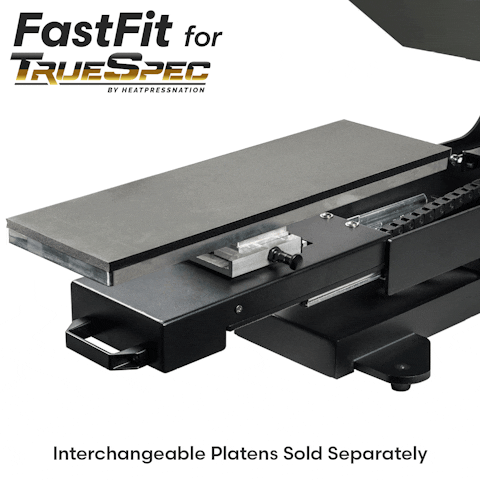

TrueSpec’s advanced features take personalization and ease of use to a new level. The redesigned computer box houses a touchscreen control panel with real-time pressure readout, three preset slots for your favorite settings, and a convenient built-in backup fuse for peace of mind. With the option to switch between interchangeable lower platens, TrueSpec offers ultimate flexibility. Elevate your business with the power and precision of the TrueSpec Heat Press.

SPECIFICATIONS

Heat Press Style: Pneumatic
Heating Element Size: 15.75" x 19.75" (L x W)
Gauge Reading: Fahrenheit or Celsius degree measure
Voltage: 120V
Power Rating: 1700W/14 Amps
Maximum Temperature: 437º F
Base Dimensions: 34.5" x 26"
Machine Weight: 375.8 lbs
Machine Dimensions: 40" x 27" x 33" (W x H x D)
Shipping Weight: 496 lbs
Shipping Dimensions: 45.3" x 40.2" x 32.9"
Maximum Item Thickness: 1.25"
A 10 gallon 2 HP air compressor is required for use (not included)

EXTENDED WARRANTY

Protect your investment by extending the manufacturer's parts and service warranty.

HeatPressNation's MyExpert Protection keeps your device covered when bad luck happens. We'll work with the manufacturer to makes sure you receive the correct replacement parts and service for your product.

PLANS

1 Year Total Coverage - Included with purchase
2 Years Total Coverage - $49.99
3 Years Total Coverage - $79.99
4 Years Total Coverage - $99.99

Select please choose

Without liftgate service

With liftgate service

Variants

Quantity

Only 1 sample pack per customer

Product Details

The HPN TrueSpec 16" x 20" Pneumatic Double Station Heat Press is built for high-volume production environments where speed, consistency, and operator efficiency matter most. Featuring fully pneumatic operation and automatic station switching, this press allows you to apply one transfer while preparing the next, with the upper heating element shuttling seamlessly between two lower platens at the push of a button. An industrial laser-cut steel frame, solid-core heating element over 20% thicker for superior heat retention, and advanced safety features ensure reliable, repeatable results across every job. Finished with the signature gold upper platen cover—the mark of a genuine TrueSpec press—this freight-shipped machine delivers production-level performance with minimal operator fatigue.

Features

Pneumatic Double Station Operation: Air-powered pressing with automatic station switching allows continuous workflow and consistent pressure every cycle.
Automatic Station Switching: Upper control housing and heating element automatically move between platens to eliminate manual repositioning.
Enhanced Heating Element: Solid-core heating element over 20% thicker for unmatched heat distribution and retention.

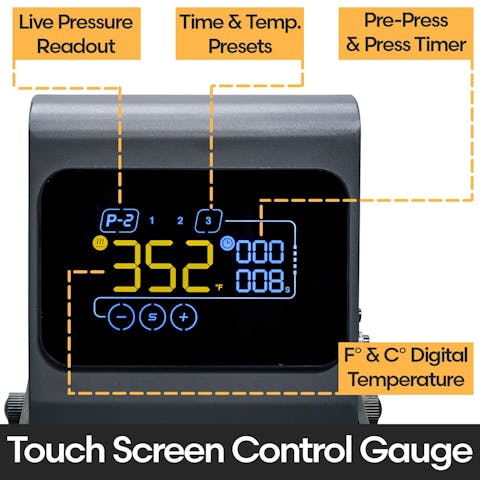

Touchscreen Controls with Pressure Readout: Touchscreen gauge includes real-time pressure display, preset storage, and pre-press timer functionality.

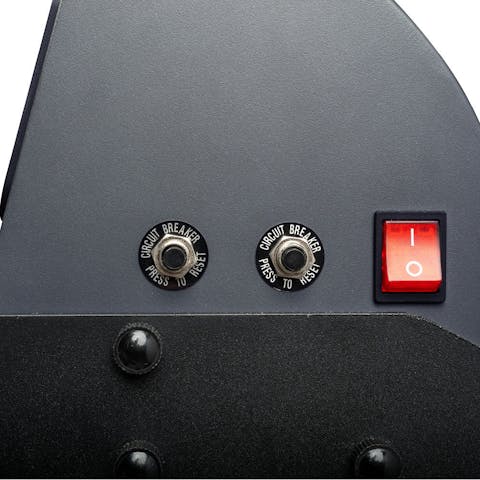

Industrial TrueSpec Construction: Laser-cut steel frame with anti-burn shield, dual-circuit protection, and UL-certified components.
